Fall protection anchors provide a secure connection location for personal fall protection equipment used during work at height. A properly selected anchorage must account for the supporting structure, attachment method, worker location, intended fall protection system, equipment compatibility, and the forces that could be placed on the system during use.
Fall Protection Services provides design coordination, fabrication support, and installation services for fall protection anchors in commercial and industrial facilities. Anchor points may serve as part of a personal fall arrest system, travel restraint system, vertical lifeline, horizontal lifeline, or other engineered fall protection arrangement depending on the application.
Fall Protection Anchors for Permanent Work-at-Height Access
Permanent fall protection anchors give workers defined connection locations where routine maintenance, inspection, service, or construction activities require personal fall protection. They may be installed on rooftops, structural steel, concrete, equipment-support structures, and other suitable structural assemblies.
The anchor itself is only one part of the system. Its location and connection to the supporting structure can affect available fall clearance, potential free-fall distance, swing-fall exposure, worker movement, connector compatibility, and the loads transferred into the structure. For that reason, anchor placement should be based on how workers will actually access and move through the work area rather than simply placing connection points wherever structural attachment appears convenient.
FPS works with project teams to coordinate anchor locations, structural attachment requirements, system layout, and installation conditions before the anchor points are placed into service.

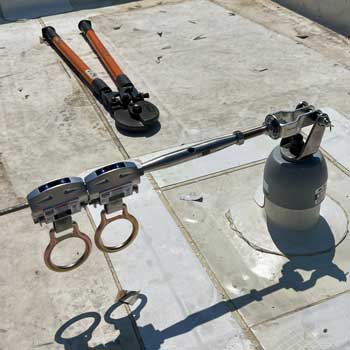

What Is an Anchor Point in Fall Protection?
An anchor point in fall protection is a secure location used to connect equipment such as a lanyard, self-retracting lifeline, vertical lifeline, or other component of a personal fall protection system. OSHA defines an anchorage as a secure point of attachment for equipment such as lifelines, lanyards, or deceleration devices.
The terms anchor point and fall protection anchor are often used in the field to describe both the structural anchorage and the installed connector that provides an accessible tie-off location. Technically, these components should be considered as part of the complete system. A rated anchor connector cannot compensate for an inadequate supporting structure, improper attachment, incompatible connecting equipment, or a layout that does not provide the necessary fall clearance.
OSHA Requirements for Fall Protection Anchor Points
For general industry applications covered by OSHA 29 CFR 1910.140, anchorages used with personal fall protection equipment must be independent of anchorages used to suspend workers or work platforms. OSHA requires these anchorages to either support at least 5,000 pounds for each employee attached or be designed, installed, and used under the supervision of a qualified person as part of a complete personal fall protection system that maintains a safety factor of at least two.
Construction requirements under OSHA 29 CFR 1926.502 contain a similar anchorage provision for personal fall arrest systems. OSHA permits an anchorage capable of supporting at least 5,000 pounds per attached employee or an alternative system designed and used as part of a complete personal fall arrest system with a safety factor of at least two under the supervision of a qualified person.
The 5,000-pound requirement should not be treated as a blanket rating that automatically makes any structural member an acceptable anchor point. The complete load path, supporting structure, connection method, system configuration, number of users, and applicable fall protection requirements must be considered for the specific installation.
Types of Fall Protection Anchors
Fall protection anchors can take several forms depending on the structure and the work being performed. A project may require individual fixed anchor points, overhead anchors, roof-mounted anchors, concrete-mounted anchors, structural steel connections, or anchorage locations incorporated into a larger lifeline or access system.
Roof Anchor Points
Roof anchor points can provide connection locations for maintenance personnel, contractors, inspectors, and other workers who need access to exposed rooftop areas. Their placement may support fall arrest or travel restraint depending on the system design and work area.
Roof construction has a direct effect on anchor selection. Attachment requirements may differ between structural steel, concrete, wood, metal deck assemblies, and other roof-supporting structures. Roof membranes, insulation, curbs, penetrations, flashing details, and access to the supporting structure can also affect installation.
Structural Steel Anchors
Structural steel can provide suitable attachment locations when the supporting member, anchor connection, and complete fall protection system meet the requirements of the application. Connection methods may include purpose-built anchorage connectors or fabricated assemblies designed for attachment to specific structural members.
Member size, orientation, connection location, accessibility, loading direction, and existing structural conditions all need to be considered before installation.
Concrete Anchors
Concrete anchor points require consideration of the concrete substrate and the specific attachment system being used. Concrete strength, slab or wall thickness, embedment, edge distance, reinforcement, anchor spacing, installation orientation, and manufacturer requirements can affect the completed connection.
The rated capacity of an anchorage component should not be separated from the conditions under which that rating was established.
Overhead Anchor Points
Overhead fall protection anchors can reduce free-fall distance when workers can remain connected above or near the working position. They are commonly considered for areas where personnel repeatedly work around machinery, loading areas, service locations, elevated platforms, or other fixed work zones.
An overhead system still requires sufficient clearance below the worker and must account for the characteristics of the lanyard, self-retracting lifeline, harness, connectors, and other components used with the anchorage.

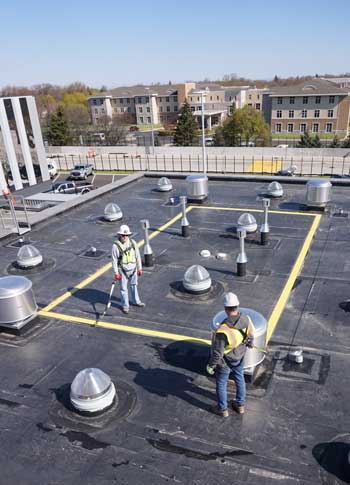

Anchor Point Location Matters
The physical location of a fall protection anchor can be as important as the anchor itself. An anchorage positioned too far from the work area may create excessive horizontal movement, increase swing-fall exposure, interfere with equipment, or make it difficult for a worker to remain connected while completing the task.
Anchor layout should consider where the worker enters the exposed area, the path needed to reach the work location, the expected working radius, nearby edges and openings, obstacles below the work surface, and available clearance.
Where possible, travel restraint can be used to prevent a worker from reaching a fall hazard. Fall arrest serves a different purpose. It allows a fall to occur and then arrests that fall within the limits of the system. Anchor placement, connecting equipment, and system geometry must match the intended method of protection.
Fall Protection Anchors as Part of a Complete System
A fall protection anchor should never be evaluated only as an isolated piece of hardware. OSHA requires personal fall protection systems and their components to meet specific performance, inspection, compatibility, and use criteria. General industry requirements also state that horizontal lifelines must be designed, installed, and used under the supervision of a qualified person as part of a complete personal fall arrest system that maintains a safety factor of at least two.
System planning may need to consider:
- Anchorage location and supporting structure
- Number of workers using the system
- Structural attachment method
- Lanyard or self-retracting lifeline type
- Free-fall distance
- Required fall clearance
- Swing-fall exposure
- Connector compatibility
- Worker access and movement
- Potential rescue requirements
- Roof or structural conditions at the installation location
These factors help determine whether individual fall protection anchor points are appropriate or whether another system, such as a horizontal lifeline, guardrail system, or travel restraint arrangement, better fits the work area.
Permanent Fall Protection Anchor Point Installation
Permanent anchor installation requires more than fastening an anchorage connector to an available surface. The installation must transfer system loads into a suitable supporting structure while maintaining the attachment conditions required for the selected system.
Existing facilities can introduce additional considerations. Roofing assemblies may limit access to structural members. Mechanical equipment may interfere with preferred anchor locations. Existing steel or concrete conditions may differ from construction documents, and completed roof systems may require coordination to limit or properly detail penetrations.
FPS can coordinate fall protection anchor installation with contractors, facility personnel, engineers, roofing teams, and other project stakeholders so structural attachment, access, roofing conditions, and system layout are addressed before installation.
Fall Protection Anchor Systems From FPS
Fall Protection Services supports commercial and industrial fall protection projects where workers require defined tie-off locations for recurring or project-specific work at height.
Our scope can include fall protection system design coordination, fabrication support, and installation based on the requirements of the project. System selection depends on the structure, work area, access requirements, intended method of fall protection, and other site-specific conditions.
Whether a facility requires individual fall protection anchor points or anchors incorporated into a larger lifeline or access system, the starting point should be the work being performed and the structure available to support the system.
